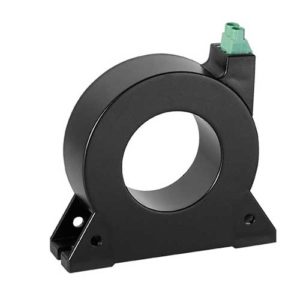

| Current Input (••n) | ZCT (multiple sizes from ID of 25~200mm) |
| Measurement Range | 0.005 ~ 30.0 A |
| Output Relay Rating | SPDT 5A, 250V AC/DC |

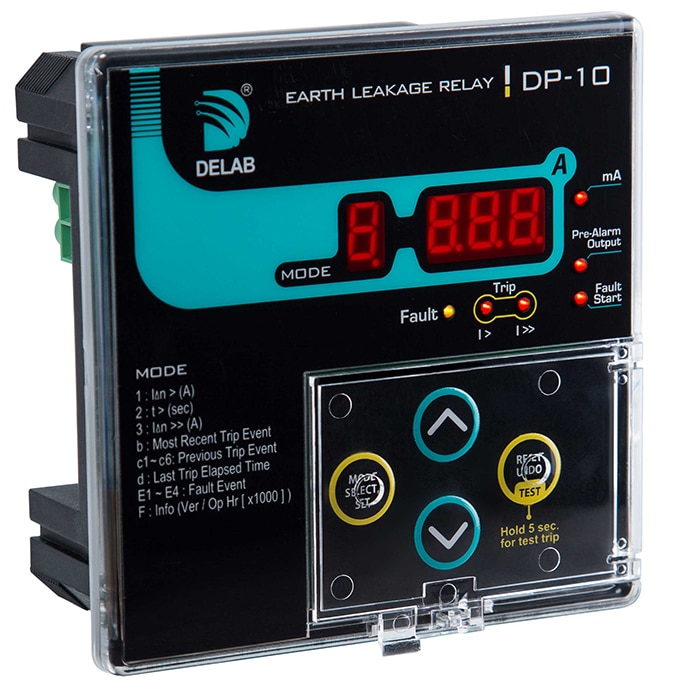

| Display | 7-Segment LED (3 + 1digit) |
| Indication (LEDs) | mA, pre-alarm, fault, fault start event, lo / hi trip |
| Operating Temp. | 0ºC ~ +55ºC |
| Humidity | 56 days at 93%RH, 40ºC non-condensing |
| IP Rating | IP54 (front panel) |
| Weight | 230 g |
| PARAMETER SETTING | |
| ••n >: lo-set | 30mA~5.00A 0.03~1.00A (step of 0.01A) 1.00~5.00A (step of 0.05A) |
| •>: lo-set trip delay time | 0.03s~20.0s 0.03s~0.10s (step of 0.01s) 0.10s~1.00s (step of 0.02s) 1.0s~20.0s (step of 0.1s) |
| ••n >>: hi-set | OFF or 0.1A~20.0A (step of 0.1A) |
| •>>: hi-set trip delay time | fixed @ 30ms |
